A finned tube heat exchanger utilizes finned tubes as the main heat transfer element. Air / Gas will pass flow outside the tubes where the heat transfer rate is increased due to the finned tubes and water will flow through the tubes. The flow arrangement can either be crossflow or counterflow.

Please also see Heat Exchanger Components for our full range of our available finned tubes.

FRHE can offer different configurations and material types to suit different applications :

• Air Heater / Preheater
• Air Heat Recovery
• Thermal Oil Heater
• Air Dryer
• Water Generator Cooler
• Waste Heat Recovery
• Charge Air Cooler

Industries

We can supply replacement units with exact dimensions as per original units or we can supply new custom designed units for new duties. Further information as per below :

A wide range of finned tubes are available for construction depending on application. The characteristics of our design include :

• Minimum pressure loss due to homogenous air flow
• Low noise level
• Resistance for corrosion
• High heat transfer coefficients
• Compact and long lasting

Header Types available :

• High Pressure design with welding neck flanges
• Inspection free design with weld end connections
• Special designs for certain applications

Water Cooler - Power Plant, Malaysia

Thermal Oil Heater

Steam Air Heater - Australia

Air Preheater - Petrochemical, Vietnam

Lub Oil Cooler - Power Plant, Malaysia

Steam Air Heater - Petrochemical, Malaysia

Air Preheater for combustion

Generator Air Cooler

Air Preheater for Power Plant

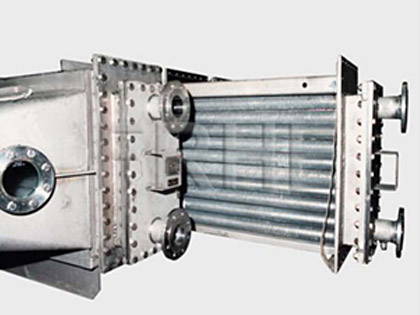

Air Heater pushed into SS housing

Generator Water Cooler - Power Industry

Air Preheaters and Gas Heaters - Petrochemical Industry, Japan

Air Preheaters and Gas Heaters - Petrochemical Industry, Japan

Air Preheaters and Gas Heaters - Petrochemical Industry, Japan

Multistage Air Heater - Food Industry, Malaysia

Steam Heater using Elliptical Tubes - Wood Industry, Malaysia

Multi-stage Air Heater (Steam, Thermal Oil and Condensate) - Food Industry, Malaysia

Multi-stage Air Heater (Steam, Thermal Oil and Condensate) - Food Industry, Malaysia

Oil Mist Cooler - Manufacturing Industry, Malaysia

Oil Mist Cooler - Manufacturing Industry, Malaysia

Oil Mist Cooler - Manufacturing Industry, Malaysia

BioGas Cooler - BioGas Industry, Indonesia

Thermal Oil Heater - Wood Industry, Malaysia

Thermal Oil Heater - Wood Industry, Malaysia
